How Our Electrolyzer Technology Works
PEM electrolyzers generate hydrogen by splitting water molecules through an electrochemical process called electrolysis. When powered by renewable sources of energy, electrolyzers can produce clean hydrogen for various on-site applications, including industrial feedstock, transportation and power generations. Discover the process below.

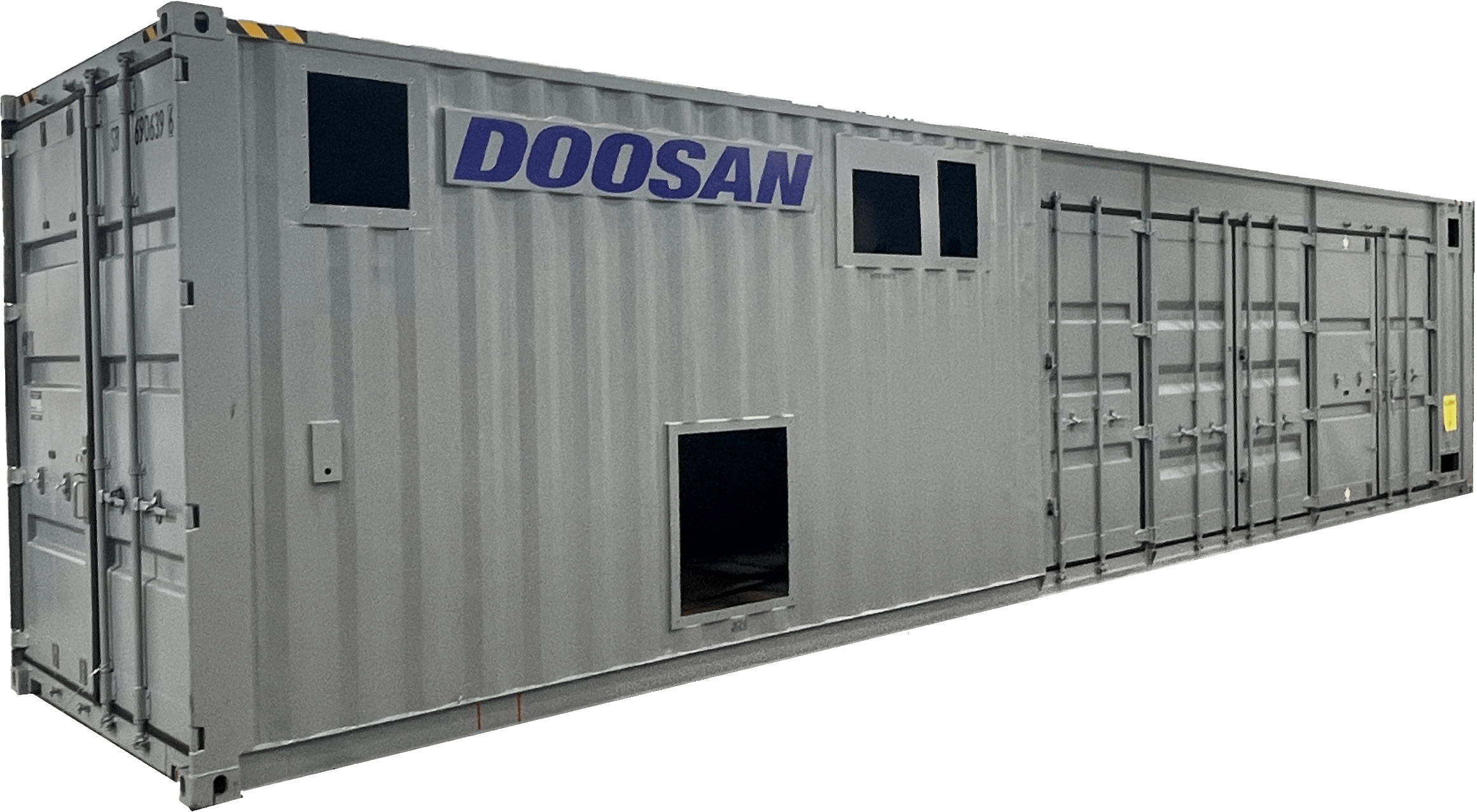

Electrolyzer
How it Works
Step 1
Water & Electricity as Inputs to the System
Electricity and city water are the only inputs needed for our PEM electrolyzer system. RO and EDI technologies are first used to purify the water for the electrochemical process (WTS – water treatment process). In parallel, the power supply and control system (PSCS) converts AC electricity into DC for use in running and controlling our electrolyzer cell stack assembly (CSA) system.
Step 2
Hydrogen is Produced
The purified water and DC electricity is then directly used by the electrochemical cell stack assembly (CSA) within the PEM electrolyzer to produce hydrogen through an electrochemical process called water electrolysis. Our mixed resin beds continuously re-circulate the purified water throughout the process to maintain stack performance, durability, and lifetime.
Step 3
Hydrogen is Purified
Lastly, the produced hydrogen from the electrochemical cell stacks is dried and can be purified further to 99.999%+ purity through our hydrogen purification system (HPS), which is suitable for use in fuel cells and a variety of compression applications.
Multi-MW Scale-Up
HyAxiom's Scalable Modular Solution
Our modular hydrogen generation system allows for ease in Multi-MW scale-up. Sub assembly systems for water treatment, hydrogen processing and purification, and power conditioning and control optimizes system cost and customer hydrogen production cost (LCOH). This flexible design allows for HyAxiom scope optimization with partners based on site supply requirements.
Contact us for more information.
Diving Deeper
PEM Electrolyzer Key Characteristics
1 Flexible H2 Production
Balance of plant and electrical architecture capable of output up to 500 kg H2 /day.
2 Optimized H2 Production Cost from Any Power Source
High system efficiency allows for low LCOH. Flexible operations for optimized connection to all power sources, including renewables.
3 Hydrogen Suitable for All Applications
System includes hydrogen purification system (HPS), allowing for highest purity output hydrogen suitable for all use cases.
4 Long Life for Optimized O&M
Industry leading stack and system lifetime allows for long, reliable operations and optimized maintenance costs.
Specs
H2 Production
430-500 kg H2 /day/MW at 30 barg
System Efficiency
51.6-51.8 kWh/kg H2
Flexible Operations
Start Time: < 5 min Ramp
Time: 10 sec
Turn down: 10%
H2 Purity
99.999%+ H2 (with HPS)
Product Life
20 years
Stack Life 80,000 hrs+
(~10 years full load)
