As the world leans more and more toward cleaner means of production, HyAxiom’s PEM electrolyzers are ready to meet demand, generating 99.999+% hydrogen to fuel any application.

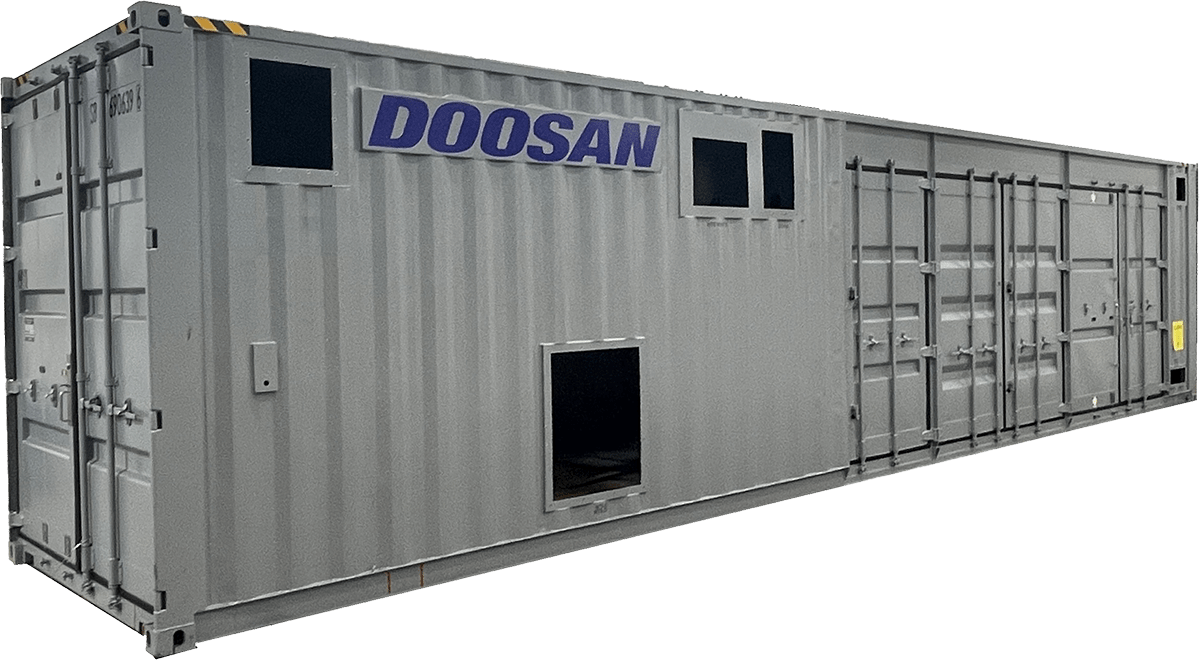

Whether it’s our 500 kg/day PureCell™ H500 containerized electrolyzer or you need multi-megawatt scalability (10-100+ MW) with our 4300 kg/day PureCell™ H4300 modular electrolyzer, we make sure you have the capacity to deliver green hydrogen efficiently and cost-effectively for anything from heavy industrial sectors like refining, chemicals, and steelmaking to hydrogen fueling stations and energy generation. They’re not just efficient. They’re versatile.
Key Features & Benefits
- Flexible operations for optimized connection to renewables
- Load and/or Demand Following
- Modular for multi-MW scale-up
- Flexible design for site optimization
- End-to-end, 20-year product life support
- Site design, installation, monitoring, and service available
Specs
-
H₂ Production (30 barg)
- PureCell™ H500 Electrolyzer: 500 kg H2/day
- PureCell™ H4300 Electrolyzer: 4300 kg H2/day
-
System Efficiency
- PureCell™ H500: 51.8 kWh/kg H2
- PureCell™ H4300: <51 kWh/kg H2
-
Flexible Operations
- Start Time: < 60 sec
- Ramp Time: 10 sec
- Turn down: 10%
-
Output Purity
- Both systems: ISO 14687 Type I Grade C (with hydrogen purification system)
- <5ppm H₂O <1ppm O₂
-
Product Life
- Both systems: 20 years
- Stack Life 80,000 hrs+
- (~10 years full load)
